Elucidation of the ageing chemistry of whiskey aged in oak barrels is important for an understanding of the final aroma and taste. Both volatile and non-volatile species comprise the additional compounds produced during maturation and their analysis requires the complimentary techniques of gas chromatography mass spectrometry (GC-MS) and liquid chromatography mass spectrometry (LC-MS). The recently introduced technology of GC large volume injection (LVI) with solvent venting is used for direct injection of samples without extensive sample pre-treatment. Data deconvolution of the resulting total ion chromatogram (TIC) allows rapid isolation of targets from other co-eluting - mainly fermentation - compounds. LC-MS then reveals additional subtle differences in compound profiles in whiskey matured in oak barrels from different wood species. Ion trap (IT) and time-of-flight (TOF) mass spectrometry (MS) techniques can than be used to give structural information and empirical formula determination on these relatively unknown species. A final important tool is use of an LC active splitter preparative system, where the specific MS signal of a compound is the trigger for isolation and collection. In this way unknown compounds can be collected in high purity for both further spectroscopic analysis and sensory evaluation.

For a premium commercial spirit, such as whiskey, wood ageing or maturation in oak barrels for extended periods is essential to give it the unique taste that consumers like.The various processing stages of barley brewing, fermentation and distillation all contribute a unique sub-set of flavours to the spirit, but it is clear that the final long ageing step in oak barrels has a significant influence on the final distinctive aroma and taste. During maturation the flavour compound changes that contribute to taste (1,2) can be subdivided into four areas:

The reaction of wood and wood compounds with components of the unaged distillate, including the dominant component: ethanol

Reactions involving only wood extractives

The processes involved and the final outcome are made more complex by additional variables, including the pre-treatment of the barrel when new, the type and origin of the wood used, and whether the barrel has been previously used in a maturation cycle (3)

Pre-treatment of the barrel involves heating the inside of the cask and may vary from an intense charring over a fire to more gentle toasting with hot air. The intensity of heating will affect the type and levels of compounds produced from the degradation of wood lignin and macromolecules. In addition to heat pre-treatment an additional mechanism that contributes to flavour involves the production of a complex from wood lignin and ethanol in which ethanol acts as a solvent and a reactant.

The mild acidic hydrolysis of this complex produces simple aromatic phenolic compounds. The majority of published work in this area to date has concentrated on elucidating the mechanisms involved in this degradation of wood to give simpler flavour molecules. An examination of the literature indicates many studies on the development, determination, structural elucidation and sensory properties of oak wood ellagitannins, a large group of polyphenolic compounds widely distributed in plants (4,5). The usual practice is to chemically extract these ellagitannins directly from the corresponding heartwood of the oak species that has initially been converted into oak chip or sawdust form. Interesting results are presented but practically no linkage is established between the species identified and their possible presence in spirits that have undergone a "natural" maturation cycle. Methanol-water extracts of oak wood chips, and wine and spirit samples actually aged with oak chips have also been used to analyse and determine low-molecular-weight phenolic compounds (6,7). Again, the problem is that this much shorter, forced ageing with a hugely increased wood-to-spirit surface exposure cannot replicate the intricate complexity and result of a natural ageing cycle.

In this article we concentrate entirely on the comparative analysis of the actual pot distillate at various intervals of barrel maturation extending to 20 years in both new

 (European) wood. Six of each of these barrels were made to identical dimensions of 500 litres volume, were lightly toasted on the inside and had no additional treatments or seasoning to uniquely allow the wood effect to be expressed in the subsequent analyses.

 Figure 1: Visual changes in unaged parent whiskey (centre) after 20 years in new Quercus robur (left) and Quercus alba oak barrels.

Figure 1 visually compares the unaged spirit (parent) before cask filling with the equivalent at 20 years from the two wood species and clearly illustrates the remarkable influence of the wood. Needless to say the sensory properties of the two aged samples in terms of both aroma and taste are also dramatically different. Gas chromatography-mass spectrometry (GC-MS) and liquid chromatography-mass spectrometry (LC-MS) analysis were performed. GC-MS was specifically used to investigate compounds associated with wood toasting and lignin breakdown. In our opinion comparative analysis of those compounds, mainly of fermentation origin, originally present in the unaged distillate, provides only limited information in the context of changes induced by maturation.

Direct large volume injection (LVI) of actual spirit samples with solvent venting of the ethanol-water matrix was used for GC-MS analysis. This injection technology removes the need for extensive sample preparation and concentration, and offers a boiling point recovery of target analytes when correctly optimized. Less volatile compounds were analysed by different LC-MS techniques using atmospheric pressure chemical ionization (APCI) in the negative mode. Ion trap mass spectrometry (IT-MS-MS) was used for structural information and the accurate mass time-of-flight (TOF) technique was used to determine the compound empirical formula.

The most widely applied LVI technique uses a PTV (programmable temperature vaporization) inlet in solvent vent mode and important parameters are the PTV temperature, the carrier gas venting flow and the sample introduction rate. If the solvent is not removed at the same time as a vapour as it enters the injector liner, then analytes will simply be removed with liquid solvent through the split line. The goal is to recover and retain the maximum amount of analytes from the solvent for subsequent splitless transfer to the column.

Research groups in Germany and Holland have pioneered research into the fundamentals of this technique and have explained the interactions between the variables involved (8-10). In the case of distilled spirits the "solvent" will be the natural ethanol-water matrix of the sample and while the maximum rate of injection for a particular solvent can be theoretically calculated from the solvent vapour pressure, split gas venting flow and the PTV temperature, an additional reduction of this maximum is necessary when water is present. This is because the high latent heat of vaporization of water induces an additional cooling effect in the liner, and the venting gas flow will have a lower than theoretical saturation with water vapour.

For the results described in this article 100 µL of spirit samples were successfully injected with 60% water at a PTV temperature of 40 °C, a solvent vent gas flow of 500 mL/min and an injection rate of 12 µL/min. This latter parameter is critical because doubling the injection speed results in more than 80% of the analyte being lost compared with the optimum injection rate of 12 µL/min. Under optimum conditions recovery data for 100 µL injections of a compound test mix compared with standard 1 µL injections of prorata concentrated solutions show more than 90% recovery of analytes and good area reproducibility vis-à-is added internal standards (ISs). Proper column choice is also important and we use an apolar CP-Sil 5 CB (Agilent Technologies, Santa Clara, California, USA) with dimensions 25 m × 0.15 mm i.d. × 2.0 µm d

Table 1: Database for target compound GCâMS deconvolution after large volume injection with solvent venting.

Injection of 100 µL will also transfer substantial amounts of non-target ester and acid analytes to the column and the thick film with phase ratio β = 19 provides the high capacity needed for retention of good analyte peak shape. The large injections were performed on disposable 2 mm i.d. plain glass liners packed with glass wool. This is useful as more frequent liner changes are obviously necessary. Unattended sequences can be accommodated by using an automated liner exchange module (Gerstel, Mülheim an der Ruhr, Germany).

A recent publication (11) describes a 5–10 µL solvent injection on an acidic wax column of distilled spirits for major fermentation esters and acids and a limited number of minor compounds associated with cereal raw material preparation and wood ageing. The present work is an extension of this successful approach, but introducing much larger volumes requiring injection speed programming and using a high temperature apolar phase for elution of less volatile analytes. Finally, because the mass spectra of target analytes will be known, expected fragment ion ratios can be used by deconvolution software (Ion Signature Technology, North Smithfield, Rhode Island, USA) to return a reconstructed ion chromatogram (RIC) of target analytes only, from the generic TIC. In this way a useful synergy is achieved with LVI simplifying the first rate limiting step of sample preparation and deconvolution the second rate limiting step of data reduction.

Table 1 describes the target compound data base for deconvolution of these compounds from the standard total ion chromatogram (TIC). This database is first established, either from the spectral data of expected compounds (vanillin, etc), literature data on monomeric lignin-derived products after thermal degradation of wood (12,13), or similar compounds after pyrolysis GC–MS of plant and lignin materials (14,15). Lignins may be pyrolyzed reproducibly to produce a mixture of relatively simple phenols resulting from cleavage of ether and certain C-C linkages. Other sources for identification of candidate target compounds are LC–GC–MS and GC–GC–MS (16). Deconvolution processes the scan data file looking for the expected relative abundances (Table 1) associated with each target and provides a list of compounds found and their relative concentrations. This process is more comprehensive than selected ion monitoring (SIM) because the software identifies and discards contributions to the spectra that have not originated from the target compounds.

Figure 2: Overlay of GC total ion chromatogram (TIC) and corresponding target compound reconstructed ion chromatogram (RIC) after 100 ÂµL injection of aged whiskey.

Figure 2 shows an overlay of the TIC and associated target RIC for a 100 µL injection of a composite 20-year-old sample from the

 casks, and demonstrates the ability of this procedure to extract a more meaningful pattern from the standard TIC.

Figure 3: Comparison of GC RIC traces for 100Â ÂµL injections of aged whiskey from Quercus robur (left) and Quercus albaoak barrels.

Figure 3 shows a comparison of the target RIC's for the 20 year old

-matured samples. Additional complexity is apparent for the

 sample, but this mainly reflects an increased response for many of the same target compounds. This type of rapid profiling can be very useful for cask quality assessment and will also in authenticity verification. We will now look at how LC–MS technology applied to the less volatile compounds reveals unique and interesting differences between these samples.

In contrast to GC–based studies, relatively few publications feature HPLC–MS or the characterization of important oak wood compounds in aged distilled spirits (17). The principal application has been high performance liquid chromatography with diode array detection (HPLC–DAD) to quantify vanillin-type phenolic aldehyde structures, as well as their associated acids and coumaric acid side chain derivatives (18). Where LC–MS has been used the main ionization mode has been electrospray ionization (ESI), which requires care to avoid problems of ionization suppression and adduct formation. In this study atmospheric pressure chemical ionization (APCI) in the negative mode was used because this provides highly selective detection for compounds with an acidic ionizable phenolic hydroxyl group. Mass spectra show almost no fragmentation and predominantly give the [M–H]

  ion after proton abstraction with much reduced chromatographic background compared with electrospray mode. APCI and electrospray are relatively weak ionization techniques and therefore the molecular ion [M–H] is usually dominant in the mass spectra of compounds. This facilitates the use of extracted ion chromatograms (EIC) of the molecular ion for quantification. Good separation was achieved on a 250 × 4.6 mm Zorbax SP-Phenyl column (Agilent Technologies) in reversed phase (RP) mode using 5 mM formic acid and methanol as eluents.

Figure 4: Comparison of TICâMS APCI negative traces for aged whiskey from Quercus robur and Quercus alba oak barrels with the corresponding LCâUV trace for aged whiskey from Quercus robur barrels.

Figure 4 shows the comparison of the TIC–MS chromatograms obtained during the analysis of aged

 samples and also the UV trace (λ = 290 nm) for an aged

 sample. Compounds in the region up to 35 min are the welldocumented vanillin-type structures and are detected in both MS and UV modes. More apolar later eluting species, with typical molecular weights from 400–700 Da, are only amenable to MS detection. The TIC–MS chromatograms of whiskey from both woods at the same age shows that, for the earlier eluting phenolic aldehydes and acids, the concentrations are generally higher from

. Later eluting compounds with higher molecular masses show substantial interwood concentration differences with significantly higher concentrations from

The previous section has shown how a single mass analysis in APCI negative mode is well suited for method development, basic characterization of the sample composition and quantification of interesting compounds. However, more advanced MS techniques such as ion trap (IT) and time-of-flight (TOF) offer the possibility of obtaining structural information of interesting compounds. Mass spectral databases for LC–MS techniques are generally not available and therefore structure determination of unknown compounds needs to be performed by complex experiments which involve all available LC–MS techniques.

Table 2: Fragmentation and exact mass data on interesting low volatility compounds after LCâIon Trap and LCâTOF.

Table 2 summarizes all LC–MS data on most of the compounds detected in whiskey from both wood species. With ion trap, up to MS

  fragmentations were performed to reveal interesting substructures of compounds. The masses of these fragments are listed in Table 2. Without changing the chromatography exact mass information was obtained from TOF measurements on the molecular ion [M–H]. Partial overlap of the signals as well as varying concentration can influence the accuracy of the mass determination. Therefore, the exact masses and calculated formulas were recorded only for those non-overlapping main compounds present at fairly high concentration. These are listed in Table 2.

The use of these techniques can be illustrated by considering the fragmentation of compound 12 (Table 2),

 = 419, identified as lyoniresinol, and the earlier eluting compound 11,

 = 581, identified as glucolyoniresinol. Lyoniresinol (19) with its typical phenolic aldehyde structure has four methoxy groups resulting in the expected sequential losses of

 = 404, 389, 374 and 359. Figure 5 shows the parent lyoniresinol structure and its MS, MS

  spectra together with the corresponding fragmentation patterns for glucolyoniresinol. In general, compounds which are formed by the addition or condensation of smaller molecules to lyoniresinol should show similar fragmentation and in this respect it can be seen that the MS

  spectra respectively of glucolyoniresinol are identical with the MS

  spectra of lyoniresinol. Compound 11 is a derivative of lyoniresinol and is also significantly more polar. The most probable formula obtained from the TOF measurement and proposed chemical structure of glucolyoniresinol is presented in Table 2. The reaction of phenolic compounds with glucose in plants has been extensively described in the literature (20), an additional new example is compound 5 in Table 2, identified as glucogallic acid. An analogous relationship can be established between compound 25 (

  pattern of compound 31. Compound 25 is again a glucoside of compound 31. Additionally, compound 31 has isomers with significantly lower concentrations and among these compound 28 is the isomer with the highest relative concentration and identical fragmentation to compound 31.

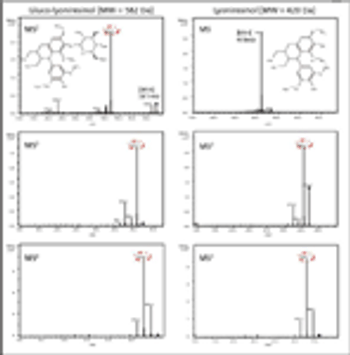

Figure 5: Comparison of Ion Trap LCâMSâMS fragmentation of lyoniresinol and glucolyoniresinol.

Fragmentation pattern and exact mass experiments can give information on structural details and the possible formula mass of a compound, but for the final determination of the compound chemical structure it may be necessary to isolate the compound for further spectroscopic examination.

Figure 6: LCâMS configuration for preparative isolation of compounds.

Compound isolation also provides pure material for sensory examination and spiking at various levels into spirits at various stages of wood maturation. Previous data has shown that the ultra-violet (UV) response of new unknown high molecular compounds is very low and therefore we use preparative LC–MS for the isolation of compounds. This system is outlined in Figure 6 and is based on the "active splitter" principle where the MS signal for the target compound is used to divert the compound to the fraction collector. The fractions were cut with the MS in selected ion mode and using the typical APCI negative

 of the target. Progress so far has provided the following three main compounds at high purity: Compound 12 (

 = 501) at the milligramme level. Purified samples will be further investigated for structure determination by

Various novel GC–MS and LC–MS techniques have been used to investigate quite obvious visual and sensory differences in whiskey matured in oak barrels made from different wood species. Substantial information can be obtained by using approaches that allow direct analysis of samples without extensive sample preparation. In GC–MS this is achieved by on-line concentration in the inlet by LVI with solvent venting of the dominant ethanol-water fraction followed by target compound deconvolution, and in LC–MS by using atmospheric pressure chemical ionization (APCI) as a selective detection mechanism for the compounds of interest. LC–IT-MS provides molecular fragmentation information to assist in structure determination and LC–TOFMS provides exact mass information for empirical formula determination.

, PhD, is Head of Technical Development at Irish Distillers, an important subsidiary of Groupe Pernod Ricard. He has published extensively on modern GC sample introduction techniques applied to distilled spirits, where much larger volumes than standard can be introduced with matrix removal incorporated into the injection procedure. He represents Ireland on the Technical Committee of CEPS, the European Spirits Producers Association.

, PhD, is a Senior Scientist at Irish Distillers, Pernod Ricard, and has experience in state-of-the-art separation science and chromatographic techniques. She previously worked in the environmental and pharmaceutical sectors with a specialty in LC–MS and LC–TOF-MS techniques. Her main focus is on the methods development, validation and compound identification.

, PhD, is the owner and general manager of TeLA GmbH, a contract laboratory in the field of Food Safety Analysis. Norbert Helle has more than 15 years experience working in food safety and environmental analysis for various German Federal and State agencies, mainly in the field of HPLC–MS. He chairs two working groups under the German § 64 Foodstuffs and Commodities Act charged with developing food safety analysis methods for phycotoxins and biogenic amines.

 is the Head of Research and Development at TeLA GmbH, including method development on HPLC–MS, HPLC–MS–MS and ICP–MS instruments for the determination of residues of pesticides, biotoxins and drugs. She oversees various national research projects on preparative and analytical HPLC–MS and HPLC–MS–MS work in the area of food safety. Meike Baden is a member of a working group under the German § 64 Foodstuffs and Commodities Act charged with developing food safety analysis methods for phytotoxins.

Articles

This article describes the latest developments in LC-MS and GC-MS that reveal the mysteries of this ancient art.

Advances in the Ageing Chemistry of Distilled Spirits Matured in Oak Barrels

In the second instalment of this series, John Hinshaw discusses the use of gas switching valves for column backflush and two-dimensional series-bypass applications.

Multidimensional gas chromatography (MDGC) as practiced today may be divided into two main application areas: Classical MDGC and comprehensive two-dimensional gas chromatography (GC×GC).

Classical MDGC involves redirecting a portion, or portions, of the eluent from one column to another column with different separation characteristics, at times that are synchronized with the elution of specific peaks (or groups of peaks) from the first column.

The more recent technique of GC×GC also involves the transfer of the eluent from one column to another, but the transfer occurs cyclically and continuously across the entire chromatogram without targeting the timing of individual peaks. All of the eluent from the first column is transferred to the second column so that all peaks are separated by both columns. The comprehensive approach yields resolving powers that approach the product of the first and second columns with a corresponding leap in data quantity and complexity. Increased knowledge and skills are required from the analyst to use this approach effectively in the routine laboratory.

This month's "GC Connections" will describe some basic examples of classical MDGC and offers insights into the more advanced methods of GC×GC.

The injection of gaseous samples from a fixed-volume loop or the swapping of detectors during a GC analysis are two simple examples of ways that chromatographers use gas switching valves (GSVs).

The previous instalment (1) showed how these fundamental valve techniques work for packed and micropacked GC columns. Chromatographers also use valves in more complex ways, such as reversing the flow of carrier gas through a column, or to manipulate and redirect gas streams between two or more columns in multidimensional GC.

MDGC techniques enable the separation of a wide range of components that might not be achievable with a single column or in a single analysis. Separating a wide range of compounds with conventional single-column GC may require column temperature programming across a relatively large temperature range while MDGC could provide an equivalent separation isothermally, sometimes in combination with carrier gas pressure programming.

Dual-parallel-column analyses are possible, too, but sometimes it is not desirable to inject the entire sample onto both columns, especially if all injected substances cannot be cleared from both columns before a subsequent injection.

Performing a pair of discrete separations one after the other is also possible, but this method would also place the entire sample into each column, as well as taking the sum of both analysis times to be completed.

Before looking at multidimensional applications, we'll first take a look at a simple column flow-reversal application.

Chromatographers use column backflushing when the sample contains residual materials that would not otherwise be eluted from a column until well after all peaks of interest have been eluted; as an alternative to high-temperature column oven excursions where the upper temperature limit may be curtailed by the maximum temperatures allowed for the valves or column; or if temperature cycling is not otherwise required. Column and valve lifetimes can be extended by avoiding repeated high temperatures over long time periods. Backflushing works by removing late-eluting impurities from a column that might otherwise interfere with subsequent analyses.

Backflushing of a single column can be accomplished using the 6-port valve arrangement shown in Figure 1. In Figure 1(a) the 6-port valve starts in the backflush or standby position: carrier gas flow proceeds through the column from left to right as shown. The set-up is ready for injection after the sample fills the sample loop.

 When the valve is moved to position (b) the sample loop is flushed by carrier gas flow onto the right-hand column connection as the column flow direction reverses and starts going from right to left. As long as the sample loop pressure is low, there is no danger of the sample flowing backwards into the carrier gas pneumatics because the carrier gas pressure is higher than the low-pressure end of the column at valve port 2 at the moment of injection.

The valve remains in the (b) position until the last peak of interest has been eluted. The valve is then returned to position (a), which causes the column flow to be restored to its original left-to-right direction (backwards in relation to the direction that the carrier gas flowed during peak elution). Any solutes or impurities left in the column at the backflush time will begin to move in reverse, towards the detector. As the total run time approaches twice the backflush time — assuming the carrier gas flow or pressure are not modified — residual material will be backflushed through the detector. At a time equal to approximately twice the backflush time nearly all of the material will have been flushed out. Some may remain as a result of band-broadening effects or nonlinear retention, so it is good practice not to perform another injection until sufficient additional time has passed in the backflush mode to remove all residual material.

Figure 2(a) illustrates a backflushed chromatogram of a simple gas mixture. In Figure 2(b), the backflushed portion of the chromatogram is enlarged 200× to show a momentary baseline disturbance at the backflush time of 480 s, followed by some unidentified C

 and heavier compounds and a return to baseline before 960 s, at twice the backflushing time. Although the impurity levels are relatively low in this example, if they are not purged from the column after each run such extraneous non-eluted material could build up over many runs and cause baseline instability. Other examples include natural gas analysis with grouping of C

+ compounds, environmental extracts with high-boiling matrix compounds and food and beverage volatiles.

The example shown here was performed on a micropacked column. The principles of backflushing for open-tubular columns are similar, but because of the low dead-volume requirements such separations may be better managed with various fluidic capillary switching devices. A future instalment  of "GC Connections" will address these configurations and their applications.

Some columns yield good separations for certain compounds but not for others. For example, a molecular sieves column discriminates between various light gases such as hydrogen, oxygen, nitrogen and carbon monoxide, but fails to separate water or carbon dioxide.

These two compounds will contaminate a molecular sieves column until baked off at high temperatures, and if they are allowed to accumulate they will degrade the separation of other compounds on the molecular sieves column. On the other hand, certain porous polymer columns easily separate water and carbon dioxide as well as a variety of hydrocarbons and other gases, but may not produce acceptable separations of those gases handled well by molecular sieves.

It is possible to combine the separation capabilities of these two columns for a complete separation of fixed gases and C

 hydrocarbons. The rest of this instalment will address the separation of these solutes in a couple of different ways. Other examples for different sets of solutes are easy to find in the chromatography literature.

Two popular methods for this type of combined column two-dimensional separation are sequence-reversal and series-bypass operation. In both cases, the flow and connections between two columns are manipulated during the analysis via valve operations so that each column receives and separates the peaks that it is best suited for.

The main differences between sequence reversal and series-bypass operations is that the former uses a single detector or two detectors in series, while the latter can use two discrete detectors for true dual simultaneous separations. Column sequence reversal is illustrated by the flow diagram in Figure 3; this configuration uses a 10-port valve. The details are not shown here for reasons of space, but several examples can be found on the manufacturers' websites.

In sequence reversal some care must be taken to ensure that peaks from one column are not co-eluted with peaks from the other. Figure 3(a) illustrates the column flows in the first step of injection with sequential flow from column 1 to column 2.

The sample is injected from the sample loop into column 1. The initial, partially-separated peaks from column 1 enter column 2 until those peaks destined to be separated on column 2 have been transferred. The valve is then moved to change to flow as shown in Figure 3(b); the sequence of the columns is reversed.

Peaks remaining in column 1 continue to partition and move along the column until they are subsequently eluted and detected. Simultaneously, peaks from column 2 are eluted into column 1, pass through it with little to no additional retention, and enter the detector. Co-elution of peaks in a complex mixture such as in this example may be difficult to avoid. In some applications it may be necessary to add a second valve to stop flow in column 2 and delay its peaks from entering column 1 until the existing peaks in column 1 have been eluted.

A related configuration keeps the second column flowing to the detector, but backflushes the first column to vent after the solutes to be separated on the second column have left the first column. An independent carrier gas source may be used for backflushing the first column. This configuration is sometimes called pre-column backflushing, and can also be found in manufacturers' literature. It is useful when only the peaks from the second column are to be analysed, and the remaining peaks in the first column can be discarded.

For the application at hand, what we really want to accomplish is the simultaneous determination of all of the peaks. This can be made possible by combining the two applications discussed so far, backflushing and column-to-column flow redirection. The backflush application shown in Figure 1 is augmented by replacing the 6-port valve with a 10-port valve, and an additional 6-port valve, carrier gas source and detector are added. The 10-port valve provides the backflush functionality, and the 6-port valve controls the destination of the effluent from column 1 — either to column 2 or to detector 1 through a restrictor — while generating functionality similar to that of the sequence-reversal configuration of Figure 3.

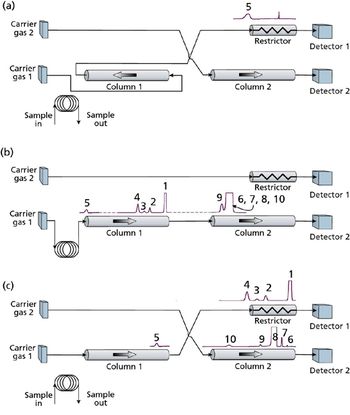

Figure 4 illustrates the flow paths of a series-bypass backflush configuration. In Figure 4(a) residual material from a previous injection is backflushed from column 1 to detector 1. The configuration remains in this position until the sample loop is filled and injection may be started. Figure 4(b) shows the flows for injection and series operation of column 1 into column 2. Here, the contents of the sample loop are injected into column 1 and the initial unresolved fixed-gas peaks plus methane are passed in series onto column 2. After the methane peak passes into column 2, the valves are repositioned to produce the flow paths shown in Figure 4(c).

Column 1 now bypasses column 2, and both columns flow to their respective detectors. The solutes that were initially passed from column 1 to column 2 are eluted into detector 2, while the remaining target peaks from column 1 are eluted into detector 1. After the column 1 target peaks have been eluted, the flows are reset to position (a), so that any remaining contaminants in column 1 are backflushed to detector 1. The restrictor, which has similar flow characteristics to column 2, serves to maintain a more constant flow in column 1 as it is switched in front of column 2 and back again.

The valve plumbing for the series-bypass backflush configuration is shown in Figure 5. The 10-port valve provides sample injection and backflush functionality, while the 6-port valve selects whether column 1 effluent is directed to column 2 or to detector 1 via the restrictor. The valve positions in Figure 5 that correlate with the three flow configurations of Figure 4 are listed in Table 1.

Table 1: Valve positions for Figure 5 to achieve flow paths diagrammed in Figure 4.

The timing of the bypass operation is important. If the first column is bypassed around the second column too soon, then some of the peaks that should enter the second column do not. If the bypass time is set too long, then some of the peaks that should remain in the first column can enter the second column instead. Figure 6 shows the effects of increasing the bypass time by 20s. The methane peak is split between the first and second columns with a 60-s bypass time. Increasing the bypass time by 20 s results in all of the methane appearing on the second column. This timing must be revalidated any time the flow, temperatures or the columns themselves are changed. The timing of the backflush operation, at 480 s in this example, is not as critical and can occur at any time that the transient spike does not interfere with a peak, once all of the peaks of interest have been eluted from column 1.

This month's instalment examined the basics of valve applications for backflushing, sequence reversal and pre-column bypassing. We then combined these basic techniques to create a hybrid dual-valve configuration capable of separating both fixed gases and hydrocarbons in a single two-dimensional analysis. MDGC presents a powerful suite of techniques that analytical chemists can use to tease apart solutes that might otherwise be inseparable, at least without significant additional effort. The next instalment in this series will discuss multidimensional separations as applied to open-tubular columns; including fluidic flow switching and applications to heart-cutting, selectivity tuning of serially connected columns and GC×GC separations.
