The introduction of high-resolution mass spectrometry (HRMS) to the field of chromatography has significantly increased the amount of information gained from analysis of complex samples. HRMS yields results with higher mass accuracy than previously possible, but this ability to precisely measure masses presents the problem of applying chemometric analyses to an exponentially larger dataset. This article will evaluate the pros and cons of evaluating HRMS data for the detection and identification of analytes present in complex mixtures.
As the instrumentation in the separation science field improves, the amount of chemical information that can be gained has exponentially increased. One of the best examples is the introduction of high-resolution mass spectrometry (HRMS) to gas chromatography (GC) and comprehensive two-dimensional gas chromatography (GC×GC) (1–12). Commercially-fielded high-resolution mass spectrometers, such as orbital trap and time-of-flight mass spectrometers, can measure masses accurately down to the sixth and fourth decimal place, respectively (13–16). With these mass spectrometers comes new software that allows for data analysis such as Kendrick Mass Defect (KMD), Van Krevelen, and Ring Double Bond Equivalency (RDBE) based on carbon number. This presents a major improvement for spectral analysis. While these methods provide improved spectral analysis, the application of HRMS also allows for unique application of external chemometric software for the identification of non-targeted compounds. However, a downside to HRMS is the large data file sizes, which are difficult to manipulate and evaluate in statistical software such as R, MATLAB, or Python.
A recent study performed at Los Alamos National Laboratory analyzed a set of complex high vacuum pump oils using comprehensive two-dimensional gas chromatography with high-resolution time-of-flight mass spectrometry (GC×GC–HRMS). The method used for this experiment was derived and modified from a webinar given by Gröger and associates in 2016 (17). In this experiment, an Agilent 8890 coupled to a LECO Pegasus HRT+ (LECO) was utilized to analyze the samples in electron ionization and negative and positive chemical ionization. Due to the high boiling point compounds found within high-vacuum pump oils, a large temperature range was necessary for analysis. Two high-temperature columns used GC×GC with the first dimension being a ZB-35 HT 30 m × 0.25 mm × 0.25 μm (Phenomenex), and the second dimension being ZB-1HT 4 m × 0.18 mm × 0.18 μm (Phenomenex). The oven was held at 175 °C for 1 min, and then ramped at 1 °C/min up to 340 °C. This temperature programming results in a runtime of over three hours!
While the runtime is a major contributor to how large the datasets are, high-resolution mass spectrometry exponentially increases the number of data points in a single sample. Mass spectra from 50 to 600 amu to the nearest 0.0001 amu were collected at a rate of 100 Hz. This resulted in a possible 5.5 million data points for each mass spectral scan.

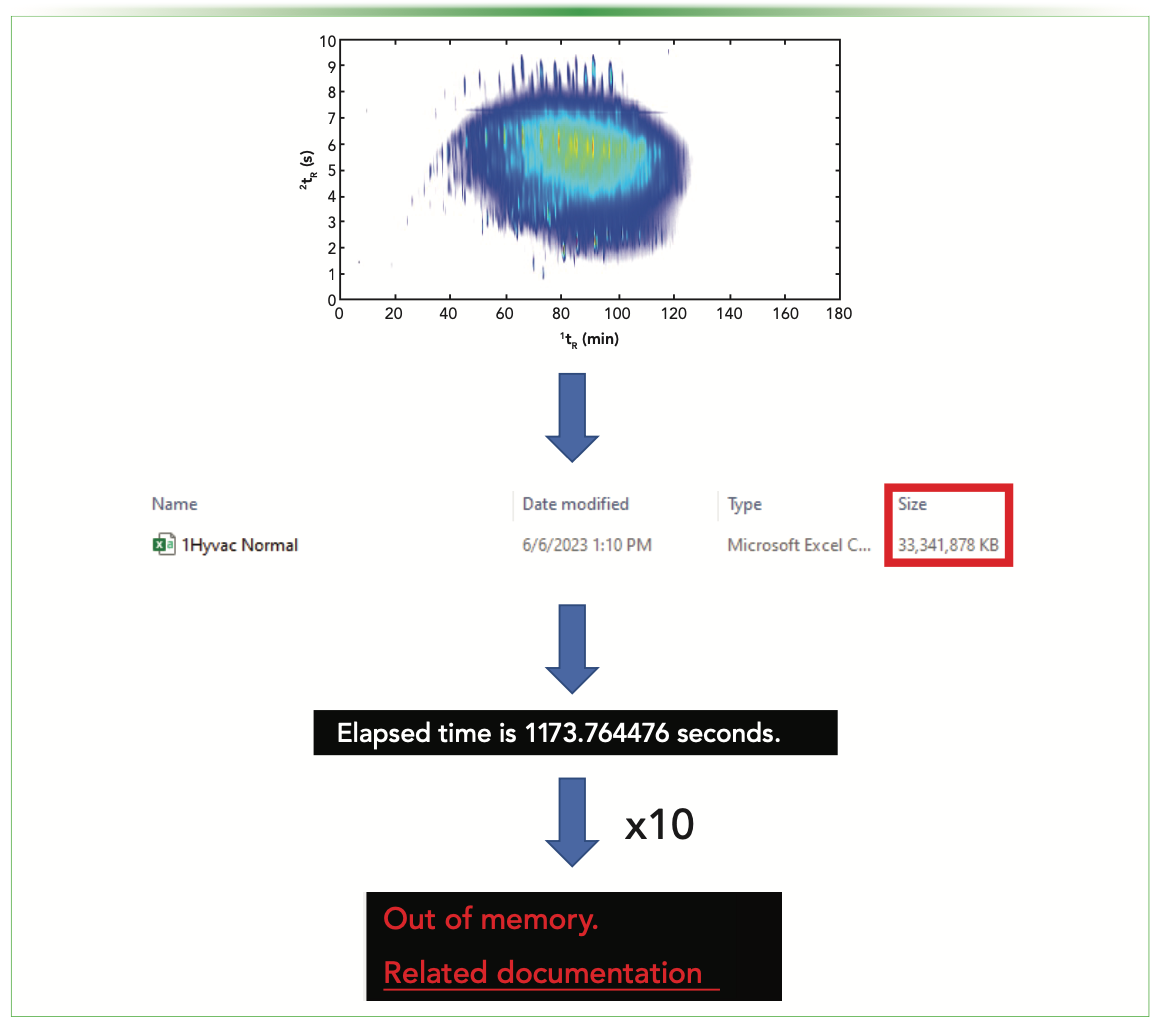

When multiplying the number of mass channels by the number of scans over the runtime for each sample, there is a possibility of having trillions of data points per sample. Though not every mass channel is present at every scan, a single chromatographic run after being exported as a .csv from ChromaTOF (Version 220.127.116.11.113) software is still over 30 GB (Figure 1)! Exporting data files of this size can take long periods of time, and although the export process was automated via the ChromaTOF software, each file required 10 min to be compiled into .csv files.
Once the data was exported, the samples were statistically evaluated using MATLAB 2022a (Mathworks). Because of the large data sizes, it took ~17 min to import each sample into MATLAB. To chemometrically evaluate the samples, multiple data files needed to be uploaded and stored in the global environment to further undergo data reduction. However, after approximately 10 sam- ples were uploaded, the code returned the error, “Out of memory” (Figure 1).
Running out of memory on a computer is a difficult problem to solve. The few options available to a chemometrician when running out of memory include buying a new computer with more RAM (potentially a cluster), or binning the data that was collected to a level where the datasets are smaller. The second option is typically what scientists will settle on, but this required taking the collected data for the high-vacuum pump oils and binning the mass spectra into unit resolution. From the unit resolution data there is a possibility of analyzing these large data files, and if regions of interest are found in specific portions of the sample, a scientist can go back and analyze the HRMS data of these regions. However, this nullifies the use of HRMS data in multiple regions of the sample where areas of interest may be present but are not being identified due to a simplification of the data.
This case leads to the question: “How do we fix this?” The answer is not simple, and could potentially require improvements in computer data storage for samples with long runtimes to be analyzed using a technique like HRMS. Similarly, more complex computing power, including clusters or supercomputers, may be required in the present day for analysis of big data at this scale. While this may not be available to the typical chromatographer, it may be necessary when trying to analyze and characterize samples that are complex in nature, such as higher boiling point petroleum products, especially when analyzed using GC×GC.
A paper by Thompson and associates explains that improvements to hardware in computers are currently slowing down, which will constrain the use of improved chemometric techniques, mainly deep learning, and require the use of more computationally efficient machine learning techniques (18). To improve classifications and comparisons that can be made with big data, machine learning techniques that are more memory-efficient need to be explored. Hopefully, in the future, hardware improvements will allow for more deep learning methodologies to be applied to big data, such as GC×GC– HRMS data.
