We continue our “Critical Evaluation” series with a consideration of liquid chromatography (LC) methods that use mass spectrometric detection.

I’ll concentrate on the detector settings that are typically provided in literature or method specifications for the mass spectrometric detector, to discern what we might learn about potential pitfalls before entering the laboratory.

From the outset, I will state that critical evaluation of LC–MS detector settings is perhaps the most difficult of all the extra-laboratory detective skills to master. This is primarily due to the differences between instrument design, the different nomenclature used by the various manufacturers for the variables associated with the source and analyzer components as well as the recommended values and ranges for the voltages, voltage offsets, gas flows, pressures, and temperatures. Perhaps this is why we, as a community of practitioners, tend to assume that many of the variables associated with our mass spectrometry (MS) detectors for liquid chromatography as “lock and leave,” that is, we set or optimize them once and then assume that these are applicable for all other applications. The notable exception here would be the capillary (sprayer) voltage, which tends to be considered as the universal variable for optimization in API interfaces. However, I would argue that the differences between instrument designs and variables is an even bigger reason to be critical when adopting methods from scientific literature or instrument manufacturers application notes, especially when the instrument used in the literature method differs from your own.

It's outside the scope of this short blog to delve into the theory of atmospheric pressure ionization (API) mass spectrometry, but for the interested reader, a short form description of the relevant processes involved in Electrospray Mass Spectrometry can be found here:

https://www.chromatographyonline.com/view/lcgc-blog-underutilized-methods-optimizing-lc-ms-sensitivity

For all instruments, the following processes are critical to ionisation and ion sampling within electrospray LC–MS:

  • Impart a charge to analyte molecule—typically through pH adjustment of the eluent or via induced charging or charge transfer in the electric filed at the tip of the capillary (sprayer)
  • Accumulating an excess of positive or negative charge (depending upon detection mode) into a droplet at the tip of the capillary (sprayer)
  • Increasing the charge (and hence the repulsive forces) at the surface of the sprayed droplet by solvent evaporation in order to induce droplet jet fission and achieve further charge density accumulation within the offspring droplet
  • Liberating the charged analyte into the gas phase (several mechanisms are proposed)
  • Preferential sampling of the charged gas-phase analytes into the vacuum region of the mass spectrometer

Within the mass analyzer, further important processes which are common to all mass analyzing devices include:

  • Declustering or fragmenting the analyte prior to the (first) mass analysing device
  • Filtering gas-phase ions based on their mass-to-charge ratio
  • Fragmenting ions from the first mass analyzing device (for MS/MS instruments) by accelerating the ions through a potential difference within a cell containing a collision gas at a given pressure or flow and temperature

The values for the variables given within LC–MS method specifications will all be associated with one or another of the processes highlighted above, and I will attempt to highlight which variable matches which process as we move through the remainder of this blog.

So, to the method for our current study, which is for a multi-laboratory study of Δ9-tetrahydrocannabinol and its metabolites in whole blood extracts (1).

HPLC Parameters

Column: Bi-phenyl (100 x 2.1 mm)

Mobile phase A: 0.1% formic acid(aq)

Mobile phase B: 0.1% formic acid in acetonitrile

Eluent Flow Rate: 0.6 mL/min.

Gradient (%B): 55% for 3.5 mins, ballistic ramp to 80% B and hold for 2 min

MS Parameters

Mode: Positive electrospray ionization, dynamic multiple-reaction monitoring

Gas Temperature: 320 oC

Gas Flow: 10 L/min [Nitrogen]

Nebulizer: 30 psi [Nitrogen]

Sheath Gas Temperature: 320 oC

Sheath Gas Flow: 12 L/min [Nitrogen]

Capillary Voltage: 3500 V

Cell Accelerator Voltage: 4 V

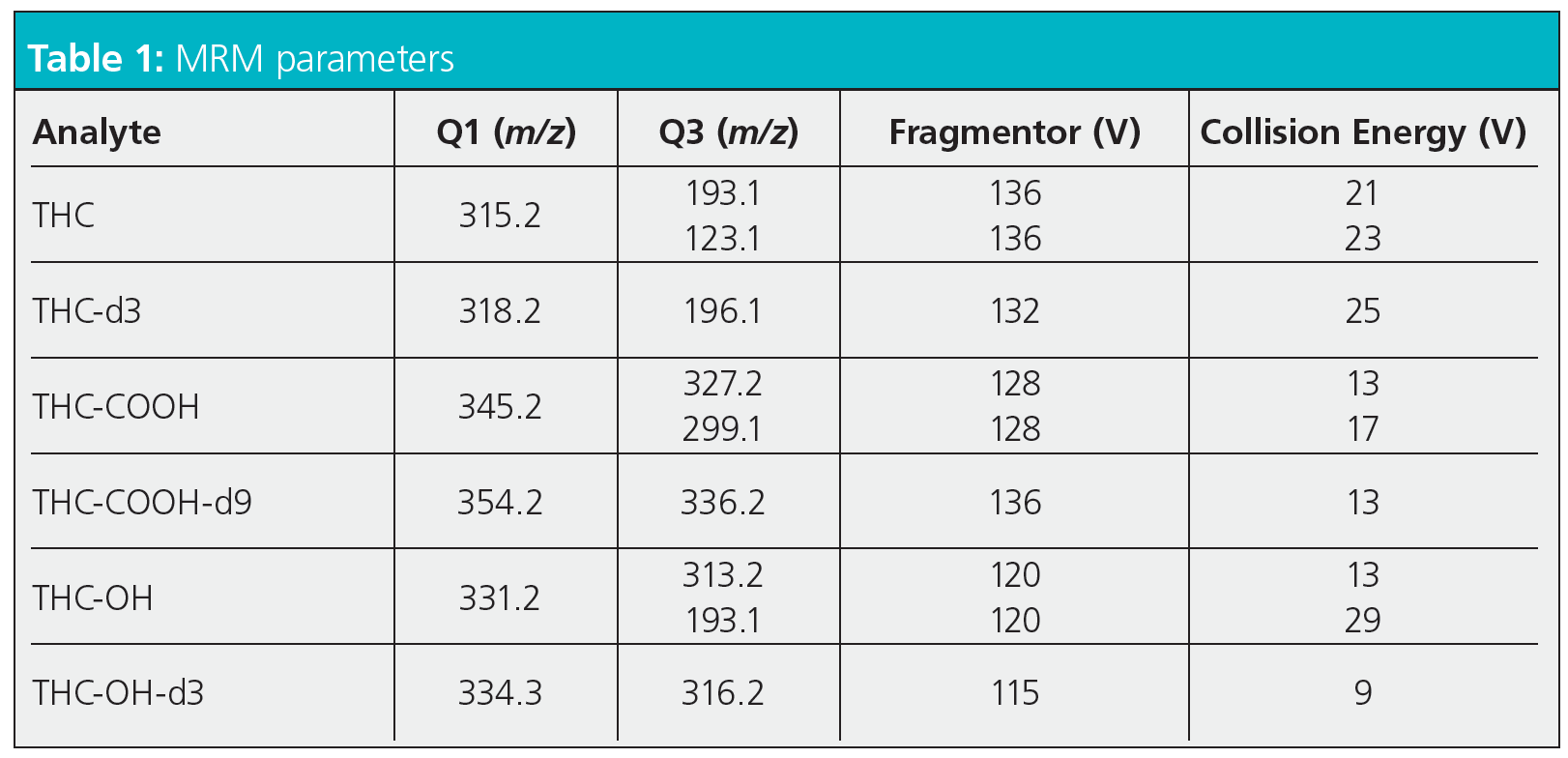

MRM Parameters

So, I will start by saying that this is a literature method and a particularly good one in that it contains all of the information necessary to reproduce the method on a similar instrument or to make important decisions when transferring the method to a different manufacturers instrument. I should also add that I’ve not used this method in anger, so make no claims as to the validity or appropriateness of the settings for this particular application.

All of this being said, let’s take a look at the various settings and see what information the method might yield prior to us donning our laboratory PPE and getting hands-on with our instrument.

This is an electrospray API method (we’ll look at other ionization modes in a later blog), and as such we need to ensure that the eluent flow into the MS interface is appropriate and does not interfere with droplet formation processes at the tip of the capillary (sprayer). If the droplets do not have time to form and accumulate charge prior to being dispelled from the tip then the instrument response will be poor or non-existent. In modern instruments, where nebulizing gas is used to help constrain the droplet growth at the capillary tip in order to accumulate charged analyte, “usual” eluent flow rates range from around 0.4 to 1.0 mL/min and anything outside of this range should be carefully considered and manufacturers literature consulted. It may be that nebulizing gas flow rates can be adjusted to help with higher- or lower-eluent flows, but one needs be prepared to make changes as necessary. At 0.6 mL/min. the eluent flow rate in our method seems to be appropriate.

As I’ve mentioned, the nebulizer gas pressure is used to control the flow of gas around the sprayer capillary and helps to ensure proper droplet formation at the capillary tip, which is essential for good sensitivity. The name of this variable and the appropriate setting and range varies between manufacturer and instrument design, and it’s good practice to check instrument manuals to assess if the setting is to the very high or low end of the range in order to assess the validity of the setting. As noted above, it may be necessary to use more extreme values of nebulizer gas flow to cope with very high or very low eluent flow rates. From personal experience, when performing design of experiment (DoE) based source optimization, the nebulizer gas flow rate doesn’t typically feature as a highly significant variable, and therefore this could be seen as a secondary variable when assessing the suitability of a method.

The Capillary Voltage is widely regarded as a (if not “the”) primary variable in affecting the efficiency and sensitivity of the electrospray process. If one considers the API interface as an electrochemical cell that is completed in the gas phase, the voltage applied to this circuit controls several crucial processes, not least of which is the charge separation that occurs at the capillary (sprayer) tip. The processes are highly analyte and eluent dependent and therefore the voltage applied to the capillary is of crucial importance. The effective capillary voltage range for a particular instrument may be wider than one might appreciate and, even if the instrument is producing a signal, it may be far from optimal and may also produce unstable or erratic results. Where possible, it is always recommended that the applied voltage to the API is optimized for each application. From experience, I know that 3500 V seems an appropriate value for the instrument cited in the application, however I would urge readers to be ready to optimize the applied voltage setting with each application and to take the view that this variable is not a one-size-fits-all parameter. In DoE experiments, this variable is very often identified as being significant, but this is not always the case and it isn’t always the most significant variable. One needs to consider the capillary (sprayer) voltage “in the round” with the other interface parameters and one should not attempt to optimize the experiment using this variable alone.

Drying Gas Temperature and Flow (Gas Temperature & Gas Flow in the method conditions above) are used to control the desolvation of the electrospray droplets as they pass through the ion source. The desolvation process is crucial in accumulating surface charge density that leads to droplet jet fission and ultimately to the release of gas-phase analyte ions into the ion source. The droplet desolvation rate is controlled directly by the drying gas flow rate and temperature, as is the position within the inlet where the analyte ions are liberated into the gas phase. Gas-phase ion liberation needs to occur as close to the sampling “sweet spot” as possible within the interface so that the applied voltage and vacuum can direct the charged analyte ions into the sampling orifice of the mass analyzing device. Unsurprisingly then, drying gas temperature and flow are often significant variables when optimizing interface variables in electrospray ionization experiments. Again, one needs to be aware of the allowable range for these variables and assess where in the range the variables in the method under consideration are set. If the instrument used in the literature method is not the same as yours, then an understanding of where the variables are in the allowable range of the instrument used will help to guide the setup of your own instrument.

The instrument used in the literature method uses sheath gas to form a temperature gradient concentrically around the capillary and within the ion source. This is purported to “focus” the sprayed droplets, aid droplet desolvation and focus analyte ions into the “sweet spot” of gas-phase ion sampling within the ion source. In this case, sheath gas temperature and flow are likely to take precedent over the drying gas as primary source optimization parameters. It’s also worth noting that other manufacturers have similar adaptations and improvements to the original electrospray source designs, and each of these needs to be considered when assessing literature methods.

The fragmentor voltage controls the potential difference applied to the first vacuum region post ion source, which is under only partial vacuum due to the sampling orifice being open to atmospheric pressure in the ion source. Higher potential differences are used to accelerate analyte ions through this region in order to further desolvate analyte ions via collisions with the background air molecules and improve the ion filtering and selection process. At higher potential differences, and therefore rates of acceleration, analyte fragmentation can be induced, which can be a positive or a negative depending upon the type of spectral experiment being undertaken. In multiple reaction monitoring (MRM) experiments, specific precursor and product ions are selected by the first and second mass analyzer in order to increase specificity and sensitivity of the analysis. One needs to take care that the fragmentor voltage is set correctly in order to ensure that the precursor ion selected for the first analyzer is either correctly generated or is not destroyed in first vacuum region. When the instrument used in the literature method is similar to yours, provided that the method states the required fragmentor voltages, then instrument setup should be straightforward. However if the instrument is different to yours, then one needs to ensure that the fragmentor (or equivalent) voltages are appropriate to ensure the optimum production (or preservation) of the precursor ion.

The collision cell voltage controls the acceleration of the precursor ion through this cell which is placed between the first and second mass analyzers. Although in the high vacuum region of the instrument, the cell is filled with a collision gas (typically helium or argon) and accelerating ions through the gas will cause them to fragment through collision with the background gas, similar to the processes discussed in the fragmentor region. The higher the gas pressure (density) and the higher the collision cell voltage, the greater the degree of analyte fragmentation. Again, one needs to optimize the collision cell voltage in order to optimize the production of the analyte product ion and hence the sensitivity of the system. The collision cell energy (voltage) is analyte specific and should be optimized for each analyte and application in same way as described for the fragmentor voltage.

Several instruments provide a software driven optimization routine in which the fragmentor and collision energy voltages can be optimized either on an analyte by analyte basis or by taking into account the “universal” response where standards of all analytes are not available. This point is important as, with all of the actions described above, one may need to assess the response of many target analytes, in which case a general optimum response may need to be considered, rather than having the luxury of optimizing one or two target analytes for which pure standards are available for infusion or injection via the LC system.

In the short space allowed here, I’ve tried to highlight some of the thinking processes which one might adopt when considering the use of a method obtained outside our own laboratory or organization. Hopefully, I have managed to highlight that a working knowledge of the instrument and principles of operation is very important in being able to do this effectively. Knowing the parameter ranges for each of the variables highlighted above is crucial in order to evaluate the method and sometimes this also requires us to know something of the instrument on which the original method was developed, to assess if the variable in question is at the higher or lower end of the range. I should also point out that we have only considered the major variables here. There will be many more associated with the tuning of the analyzing devices, for example, that I have not considered because they will be highly instrument specific. What I know to be the empirical truth is that one needs to pay careful attention to the optimization of all of the ion source and mass analyzer parameters mentioned in order to successfully transfer a method into one’s own laboratory. While we are not all skilled in or have access to DoE approaches, simple evaluation of the literature method against the settings used for other methods in our laboratory can help enormously with intercepting problems before entering the laboratory and troubleshooting them if and when they occur!
